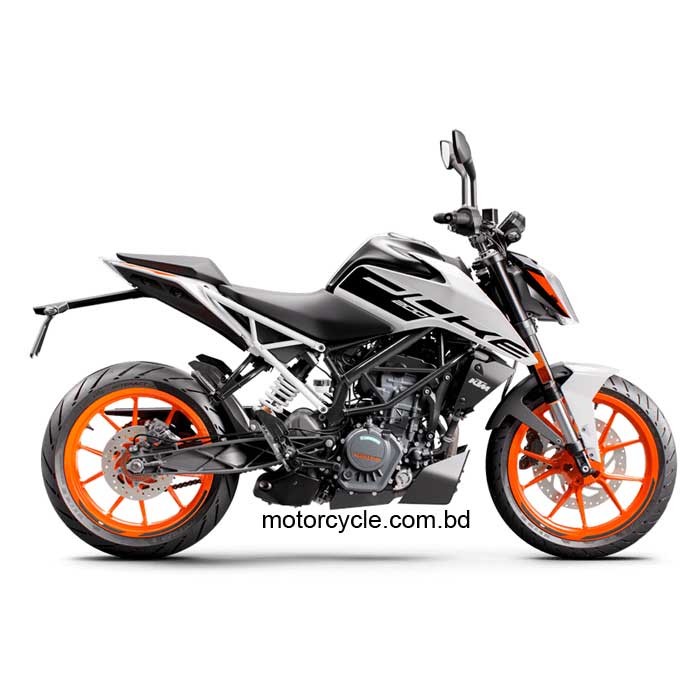

KTM Duke 200 Full Specifications
Engine & transmission
| Type | Single Cylinder, Liquid Cooled |
|---|---|
| Engine cc | 199.5 cc |
| Maxpower | 25 HP @ 10000 rpm |
| Max torque | 19.2 Nm @ 8000 rpm |
| Engine bore | 72.00 mm |
| Stroke | 49.00 mm |
| Fuel System | Fuel Injection |
| Cooling System | Liquid Cooled |
| Gears | 6 |
| Clutch | Clutch in Oil Bath, Mechanically Operated |
| Starting Method | Electric |
Body
| Length | 2002 mm |
|---|---|
| Width | 873 mm |
| Height | 1274 mm |
| Seat Height | 823 mm |
| Wheelbase | 1357 mm |
| Ground Clearance | 155 mm |
| Fuel Tank | 13.50 liter |
| Weight | 159 kg |
Safety
| ABS | Dual Channel ABS |
|---|
Brakes, wheels & suspension
| Suspension Front | WP Upside Down Forks |
|---|---|
| Suspension Rear | WP Monoshock |
| Wheel Front Type | Alloy |
| Wheel Rear Type | Alloy |
| Tire Type | Tubeless |
| Tire Front | 110/70-R17 |
| Tire Rear | 150/60-R17 |
| Brake Front | Single Disc |
| Brake Front Diameter | 300mm |
| Brake Rear | Single Disc |
| Brake Rear Diameter | 230mm |
Performance
| Mileage | 35 Kmpl |
|---|---|
| Topspeed | 142 Kmph |
Electricals
| Battery Type | Maintenance Free |
|---|---|
| Battery Capacity | 8Ah |
| Battery Voltage | 12V |
| Head Lamp | Halogen |
| Turn Lamp | Yes |
| Ignition | Contactless, Controlled, Fully Electronic Ignition System with Digital Ignition Timing Adjustment |
| Pass Switch | Yes |
| Tail Light | LED |
| Automatic Headlamp | Yes |
| Engine Kill Switch | Yes |
Features
| Speedometer | Digital |
|---|---|
| Odometer | Digital |
| Techometer | Digital |
| Tripmeter | Digital |
| Clock | Digital |
| Fuel Indicator | Yes |
| Seat Type | Split |
| Handle Type | Rod Handle Bar |
| Frame | Trellis Frame |
Others
| No. Cylinders | 1 |
|---|---|
| Drive Type | Chain |
| Carry Hook | No |
| Colors | Electronic Orange, Ceramic White |
