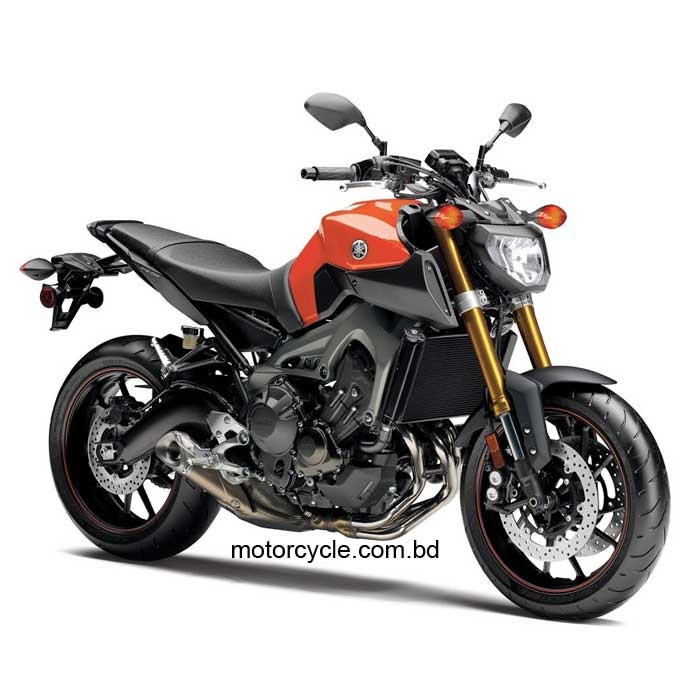

Yamaha FZ-09 Full Specifications
Engine & transmission
| Type | 3-cylinder, liquid-cooled, 4-stroke, DOHC, 4-valves |
|---|---|
| Engine cc | 847 cc |
| Maxpower | 113.4 Bhp @ 10000 rpm |
| Max torque | 87.5 Nm @ 8500 rpm |
| Engine bore | 78.00 mm |
| Stroke | 59.10 mm |
| Fuel System | Fuel Injection |
| Cooling System | Liquid Cooled |
| Gears | 6 |
| Clutch | Wet, Multiple Disc |
| Starting Method | Electric |
Body
| Length | 2075 mm |
|---|---|
| Width | 815 mm |
| Height | 1135 mm |
| Seat Height | 815 mm |
| Wheelbase | 1440 mm |
| Ground Clearance | 135 mm |
| Fuel Tank | 14.00 liter |
| Weight | 188 kg |
Safety
| ABS | Yes |
|---|
Brakes, wheels & suspension
| Suspension Front | Telescopic forks |
|---|---|
| Suspension Rear | Swingarm, Link type suspension |
| Wheel Front Type | Alloy |
| Wheel Rear Type | Alloy |
| Tire Type | Tubeless |
| Tire Front | 120/70ZR17M/C (58W) |
| Tire Rear | 180/55ZR17M/C (73W) |
| Brake Front | Hydraulic Dual Disc |
| Brake Front Diameter | 298 mm |
| Brake Rear | Hydraulic Single Disc |
| Brake Rear Diameter | 245 mm |
Electricals
| Battery Type | Maintenance Free |
|---|---|
| Head Lamp | LED |
| Turn Lamp | Yes |
| Pass Switch | Yes |
| Tail Light | LED |
| Automatic Headlamp | Yes |
| Engine Kill Switch | Yes |
Features
| Speedometer | Digital |
|---|---|
| Odometer | Digital |
| Techometer | Digital |
| Tripmeter | Digital |
| Clock | Digital |
| Fuel Indicator | Yes |
| Seat Type | Single |
| Handle Type | Pipe |
| Frame | Diamond |
Others
| No. Cylinders | 3 |
|---|---|
| Drive Type | Chain |
| Carry Hook | No |
| Colors | Deep Armor, Blazing Orange, Matt Grey and Race Blu |
